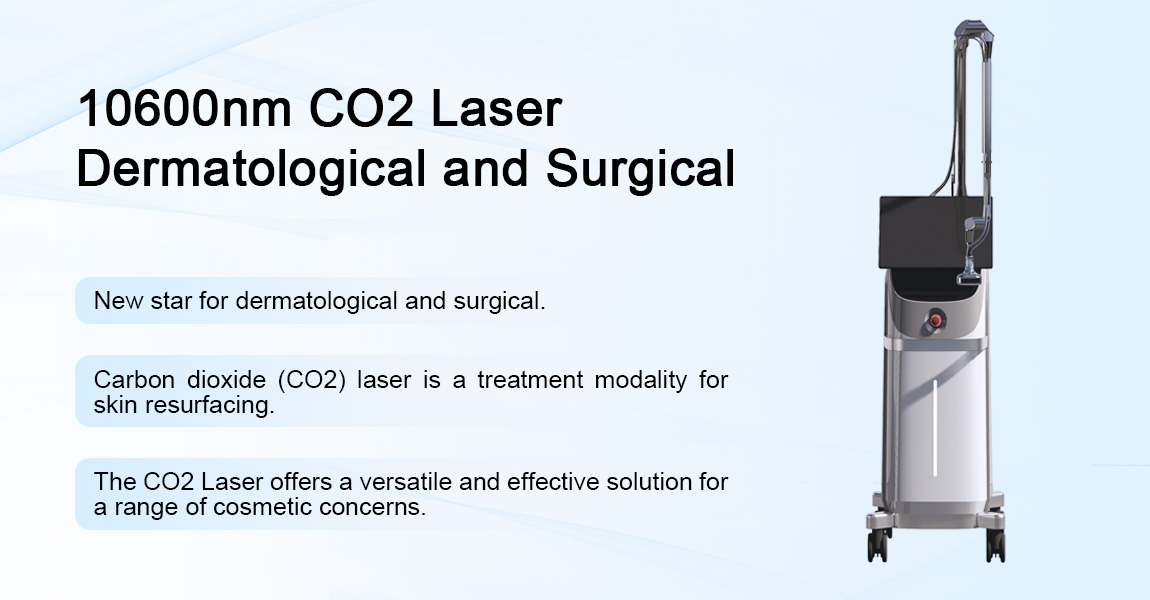

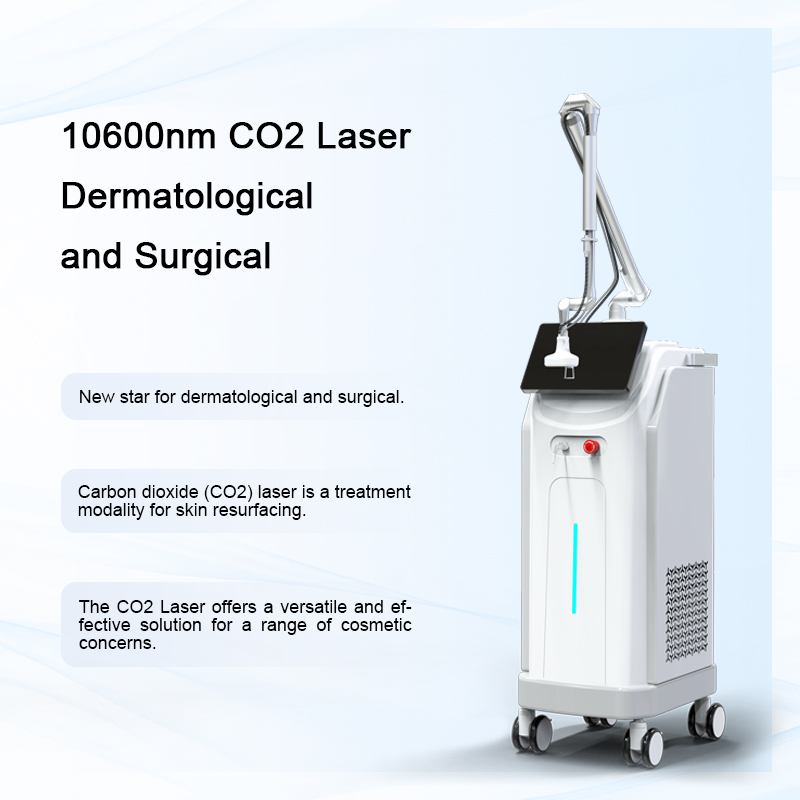

10600nm CO2 Laser Dermatological and Surgical
10600NM CO2 LASER PRINCIPLES
CO2 laser system generate a 10,600nm wavelength, which is absorbed by water in the tissue. The laser energy heats up the water until it reaches a boiling point causing the evaporation of the affected tissue. Some heat is absorbed by tissue adjacent to the ablated target area, causing tissue coagulation which induces hemostasis (the cessation of bleeding) as well as thermal stimulation of deep skin layers, which induces fibroblast stimulation and neocollagenesis (the formation of new collagen).
10600NM CO2 LASER TECHNICAL SPECIFICATIONS
| Wavelength | 10600nm |
| Laser medium | RF sealed-off CO2 laser |
| Laser Power | 0.5W~40W |
| Beam delivery | Articulated arm |
| Function mode: Fractional/ Vaginal care | |
| Energy | 1~300mJ/dot |
| Repetition rate | 1Hz~1KHz |
| Pulse width | 0.1~50ms/dot |
| Density | 25~3025 PPA/cm² (12 level) |
| Scan area | 20x20mm |
| Shape | Straight line, square, rectangle, triangle, |
| regular hexagon, circle and ellipse | |
| Pattern | Array,Random |
| Function mode: Normal | |
| Operating mode | CW /Single Pulse /Pulse/S.Pulse/U.Pulse |
| Pulse repetion rate | S.Pulse: 2~500Hz U.Pulse: 2~1000Hz |
| Pulse width | Pulse Single pulse S.Pulse U.Pulse |
| 5~500ms 1~500ms 1~4ms 0.1~0.9ms | |
| Aiming beam | Diode 655nm(Red), adjustable brightness |
| Operate interface | 8" True color touch screen |
| Power supply | AC 100V or 230V, 50/60Hz |
| Cooling system | Air cooling system |
| Dimension | 50*45*113cm(L*W*H) |
| Weight | 55kgs |
10600NM CO2 LASER ADVANTAGES
High-efficiency Laser Mode Structure.
Good stability, Long life and Light-weight.
CO2 laser produces higher power with relative efficiency, resulting in less tissue trauma and edema, which leads to minimal heat damage and shorter healing time.
As ablation occurs, CO2 deep heating stimulates collagen growth and remodeling while providing the patient with a comfort level and convenience that approaches non-ablative resurfacing.

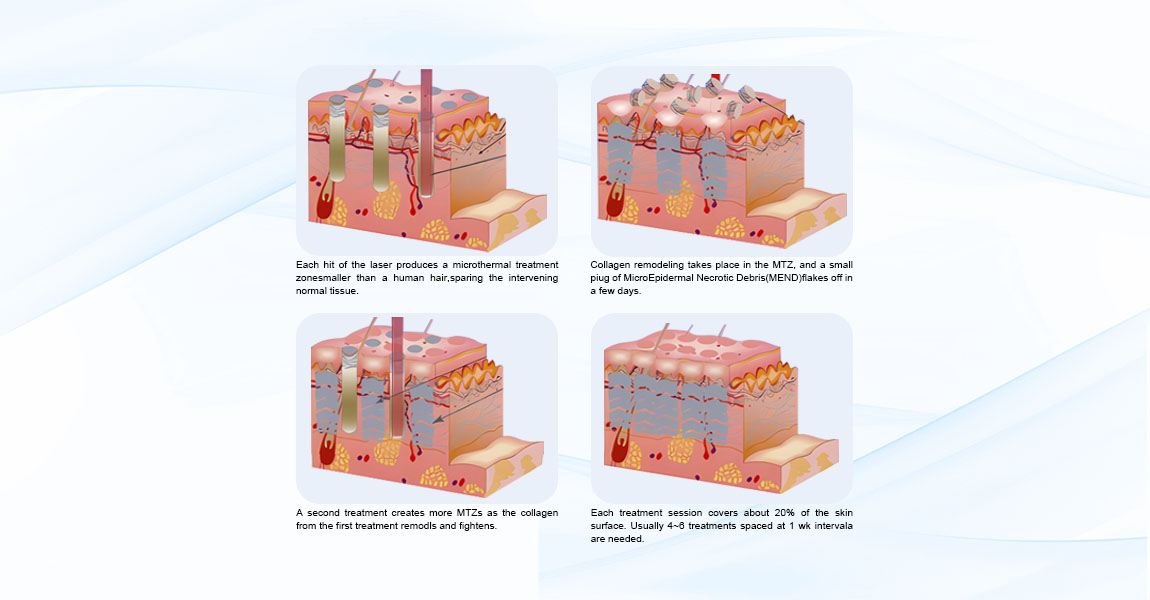

The fractional scanner distributes the laser energy in an even pattern, producing balanced vaporization, coagulation, and thermal effects on the tissues. These effects cause collagen contraction, resulting in a skin-tightening effect that is considered effective for skin resurfacing.
There are five shapes and six density options available, achieving a coverage of 95%.
10600NM CO2 LASER APPLICATIONS
Fractional handpiece:
Skin resurfacing
Skin reguvenation
Scar revision
Wrinkle removal
Pigmented lesions
Normal Handpiece:
Surgical Applications like:
Warts cutting
Syringoma
Condyloma
Vaginal Care Handpiece:
Vaginal wall tightening
Collagen remodeling
Thicker & more resilient
Labium whitening
10600NM CO2 LASER BEFORE AND AFTER PICTURES
