Multi-function Platform 8 handles for many treatments

Our Multi-function platform aesthetic device offers something for nearly every patient your customer treat. With 8 handpieces, can do over 80 treatments, and countless provider success stories—this flexible multi-purpose platform is a industry must-have for practitioners both new and experienced.



The platform technology provides the best combination. The 8 different handpieces, each for different procedures, the physician can choose which combination is best suited to practice for patients.



Model: BL-M10

Brand: BILENS

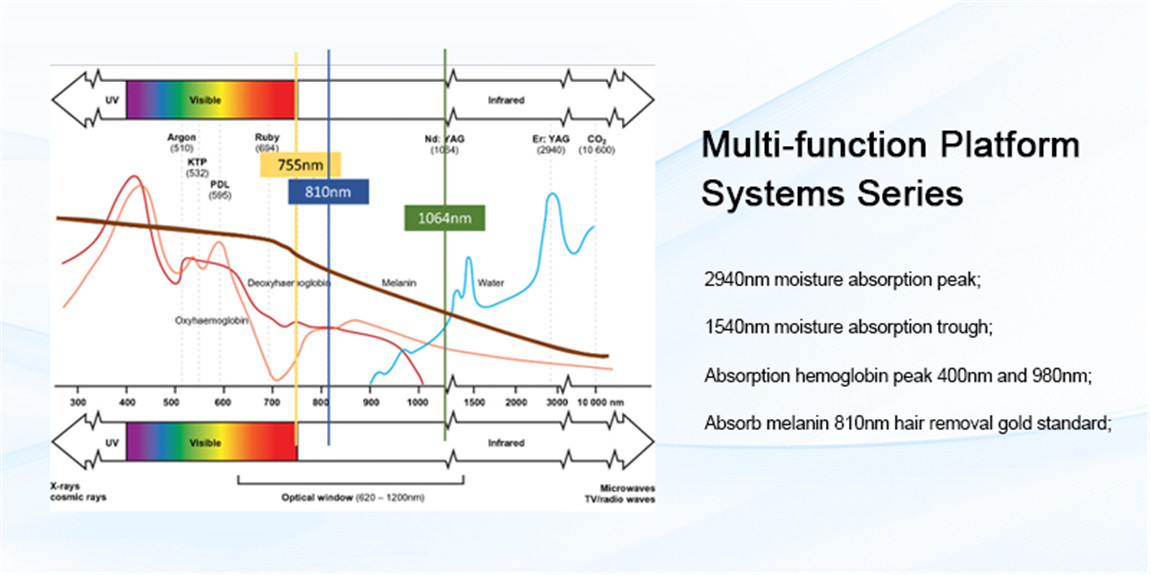

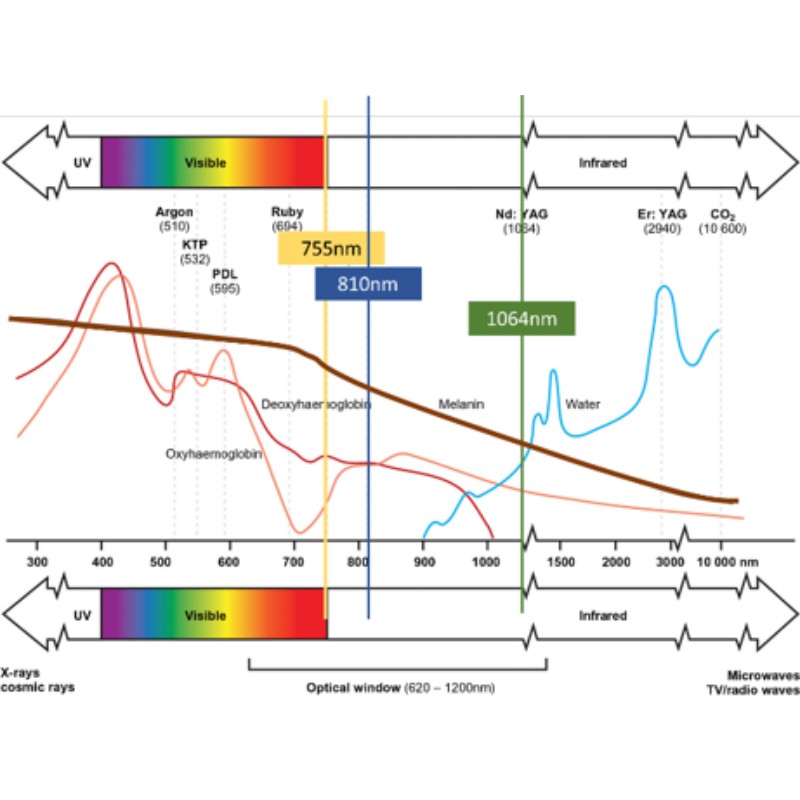

    MULTI-FUNCTION PLATFORM PRINCIPLES

    The theory of selective photothermolysis has been pivotal in the advancement of laser surgery. It explains the mechanism Clinical, Cosmetic and Investigational Dermatology by which controlled destruction of a cutaneous target can be achieved without significant injury to surrounding tissue.
    Three principles are crucial to the process. First, an appropriate wavelength should be employed that can be absorbed preferentially by the targeted tissue chromophore. Second, the pulse duration of the laser must be shorter than the chromophore’s thermal relaxation time, which is the time required for the target to lose half of its peak temperature following irradiation. Third, the fluence (or energy) must be sufficient to achieve destruction of the target within the appropriate time interval. These factors guide the selection of lasers and intense pulsed light (IPL) appropriate for a specific skin target or lesion.
    • asdsa
    • m10-2-3
    IPL (Intense Pulsed Light)
    Principle: Non-laser wide-spectrum pulsed light (400-1200nm), filter specific bands (such as 560/590nm), target melanin (pigment), hemoglobin (blood vessels) or water (hair removal).

    Diode Laser
    Principle: Semiconductor materials (such as GaAlAs) produce a single wavelength (commonly 808nm/810nm), target hair follicle melanin, and destroy hair papilla through photothermal effect.

    Triple Diode Laser
    Principle: Combine three semiconductor laser wavelengths (such as 755nm/808nm/1064nm) to act simultaneously on different depths and target tissues (melanin/hemoglobin).

    Q-switched Nd:YAG Laser
    Principle: Nd:YAG crystals generate 1064nm (or doubled 532nm) lasers, which are compressed to nanoseconds by Q-switching technology, and instantly blast pigment particles with high energy (photomechanical effect).

    Er:YAG fractional Laser
    Principle: Er:YAG crystals emit 2940nm lasers, which are strongly absorbed by water, vaporize the epidermis or dermis to form micropores (fractional mode), and stimulate collagen regeneration.

    1064nm Long pulse Nd:YAG
    Principle: Nd:YAG crystals generate 1064nm long pulses (milliseconds), targeting deep melanin or hemoglobin, and slowly heat the target through photothermal effect.

    Er:Glass fractional Laser
    Principle: Erbium-doped glass fiber generates 1550nm laser, which is absorbed by the dermis water, forming a micro-thermal damage area (non-ablative fractional), promoting collagen remodeling.

    Picosecond Nd:YAG Laser
    Principle: Nd:YAG crystal generates ultra-short pulses (picosecond level, 10⁻¹² seconds), directly shattering pigment particles through photoacoustic effect (rather than photothermal), with higher efficiency than Q-switched laser.

    MULTI-FUNCTION PLATFORM TECHNICAL SPECIFICATIONS

    IPL SSR & SHR
    Spot size 15*50mm or 12*35mm
    Wavelength 420~1200nm
    Filter 420/510/560/610/640/SHR (standard)
    Energy density 1~50J/cm²  (10-60 level)
    Diode laser
    Laser output 1000W or 1600W
    Wavelength 810nm /755+808nm/ 755+808nm+1064nm
    Spot size 12*23mm or 14*50mm & 12*15mm
    Energy density 1~62J/cm²
    Repetition rate 1~10Hz
    Pluse width 10~300ms
    Sapphire cooling -15~4°C
    Picosecond Nd:YAG laser
    Wavelength 1064nm & 532nm
    Spot size 1-5mm
    Pulsejwidth <980ps
    Max.Energy 800mJ (1064nm), 400mJ(532nm)
    Repetition rate 1~10Hz
    2940nm Er:YAG fractional ablative laser
    Spot size 7x7mm, 9x9mm, Zoom lens:1~3.5mm,6mm, 9mm;
    Pluse width 0.2~3ms
    Energy 400~2600mJ
    1540nm ErGlass fractional laser
    Spot size 10x10 mm
    Energy 6~70mJ/microbeam
    Pluse Width 10ms, 15ms
    1064nm Long Pulse Nd:YAG Laser
    Spot size 2.2*5mm, 6mm, 9mm
    Energy density 10~500J/cm2
    Pulse width 10~40ms
    Q-Switched Nd:YAG laser
    Wavelength 1064nm & 532nm
    Spot size 1-5mm
    Pulsejwidth <10ns (single pulse)
    Repetition rate 1~10Hz
    Max.Energy 2000mJ (1064nm), 1000mJ(532nm)
    Operate interface 12.1' True color touch screen
    Cooling Advanced Air & TEC water cooling system
    Power supply AC 110V or 230V, 50/60Hz
    Dimension 68*63*135cm (L*W*H)
    Weight 69Kgs

    MULTI-FUNCTION PLATFORM ADVANTAGES

    A multi-function laser platform that integrates various laser technologies (such as IPL, Diode, Q-switch Nd:YAG, Er:YAG, Er:Glass, Picosecond, and Long Pulse 1064nm lasers) into a single system offers significant advantages for aesthetic and dermatological treatments. Here’s a breakdown of its key benefits:

    1. Versatility & Comprehensive Treatment Solutions

    Multiple wavelengths & technologies in one device allow treatment of diverse skin concerns:

    Hair removal (Diode, IPL, Nd:YAG)

    Pigmentation & tattoo removal (Q-switch, Picosecond)

    Skin rejuvenation & resurfacing (Er:YAG, Er:Glass fractional)

    Vascular lesions & acne (Long Pulse Nd:YAG, IPL)

    Wrinkle reduction & tightening (Fractional lasers, RF combined)

    One system replaces multiple standalone machines, making it ideal for clinics offering a wide range of services.


    2. Cost & Space Efficiency

    Lower investment than buying individual lasers for each application.

    Reduced maintenance costs (single system servicing vs. multiple devices).

    Saves clinic space by consolidating multiple technologies into one platform.


    3. Enhanced Treatment Precision & Customization

    Adjustable parameters (wavelength, pulse duration, energy) for tailored treatments.

    Optimal technology selection for different skin types (Fitzpatrick I-VI).

    Combination therapies (e.g., IPL + Nd:YAG for vascular and pigmented lesions).


    4. Increased Clinic Revenue & Patient Satisfaction

    Attracts more clients by offering a full range of laser treatments.

    Upselling opportunities (e.g., combining hair removal with skin tightening).

    Faster treatment cycles with quick modality switching.


    5. Future-Proof & Upgradable

    Modular designs allow adding new handpieces or software updates.

    Keeps clinic competitive with evolving laser tech (e.g., picosecond enhancements).


    6. Simplified Training & Workflow

    Single user interface for all laser functions (easier for practitioners).

    Reduced setup time (no need to switch between machines).


    7. Safety & Consistency

    Integrated cooling & skin sensors improve safety across different treatments.

    Uniform software controls ensure consistent results.

    Comparison of Laser Technologies in a Multi-Function Platform

    Laser Type

    Key Applications

    Skin Types

    IPL

    Hair removal, pigmentation, vascular lesions

    I-IV

    Diode Laser

    Hair removal (especially dark hair)

    I-V

    Q-Switch Nd:YAG (1064/532nm)

    Tattoo removal, pigmentation

    I-VI

    Long Pulse 1064nm Nd:YAG

    Deep vascular lesions, hair removal (darker skin)

    IV-VI

    Er:YAG Fractional

    Skin resurfacing, scars, wrinkles

    I-IV

    Er:Glass Fractional (1540nm)

    Skin tightening, acne scars

    I-V

    Picosecond Laser

    Tattoos, pigmentation, collagen stimulation

    I-VI


    Conclusion

    A multi-function laser platform is a smart investment for dermatology and aesthetic clinics, providing cost savings, versatility, and superior treatment outcomes. By integrating multiple laser technologies, it maximizes efficiency while offering customizable solutions for diverse patient needs.

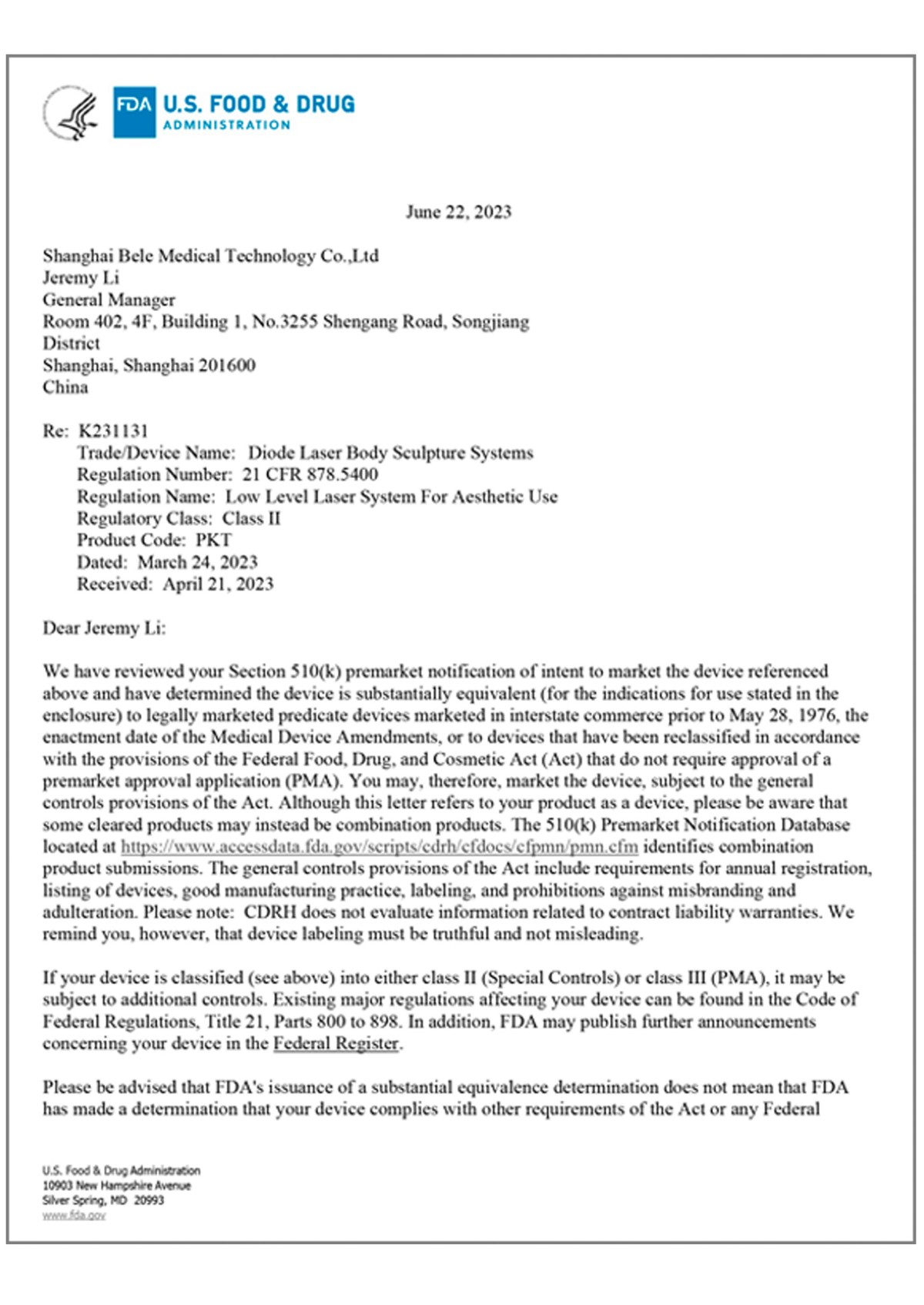

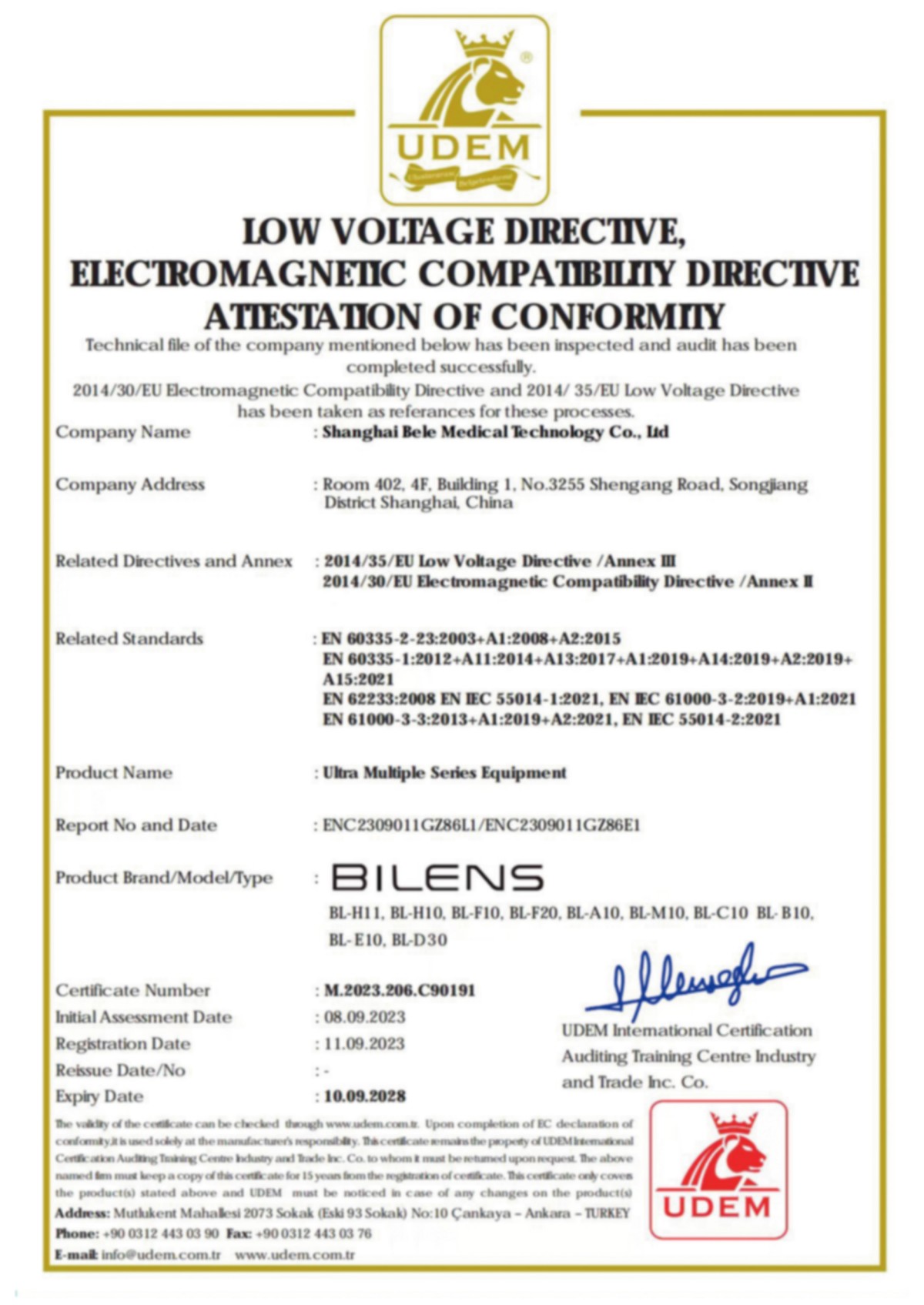

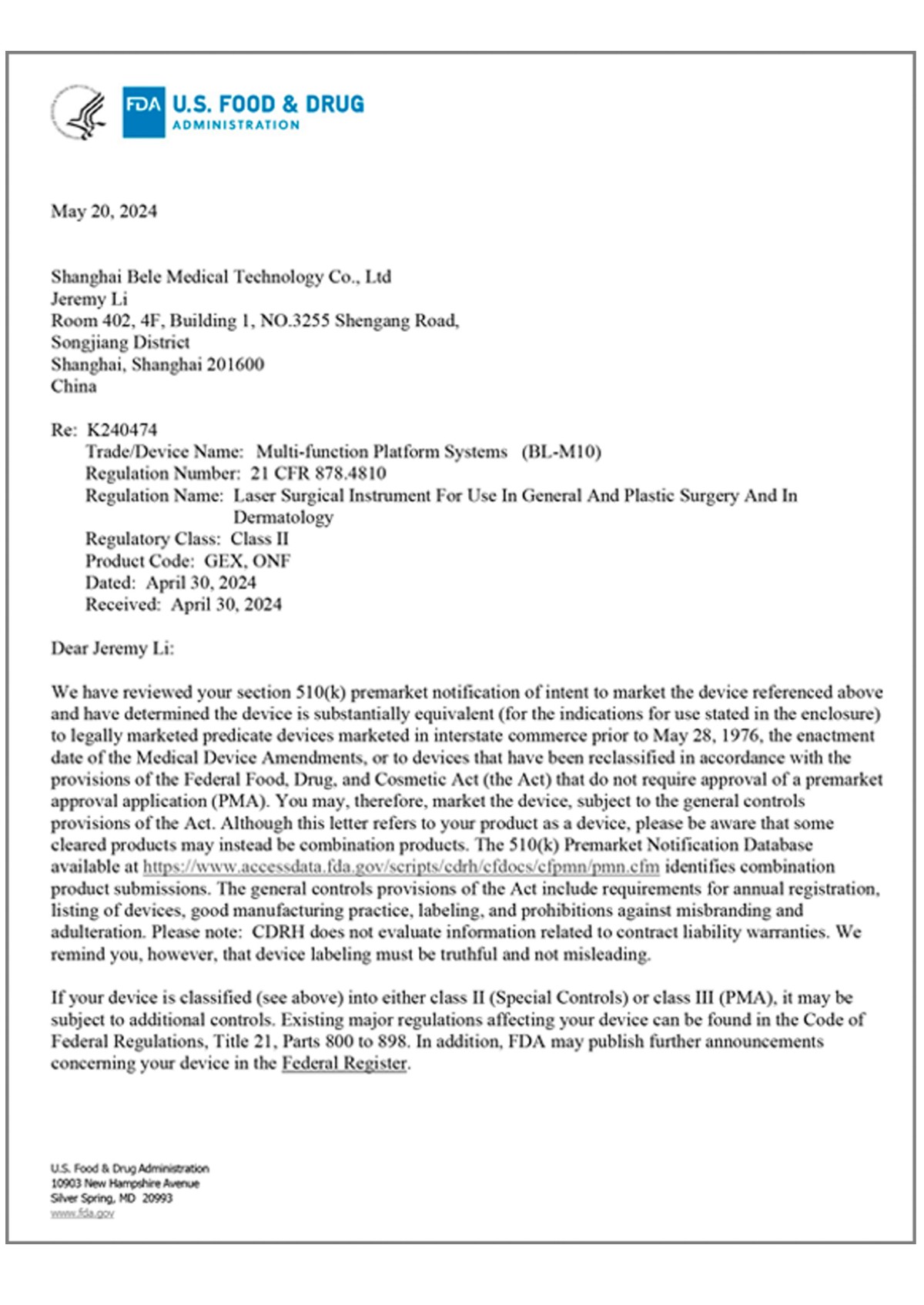

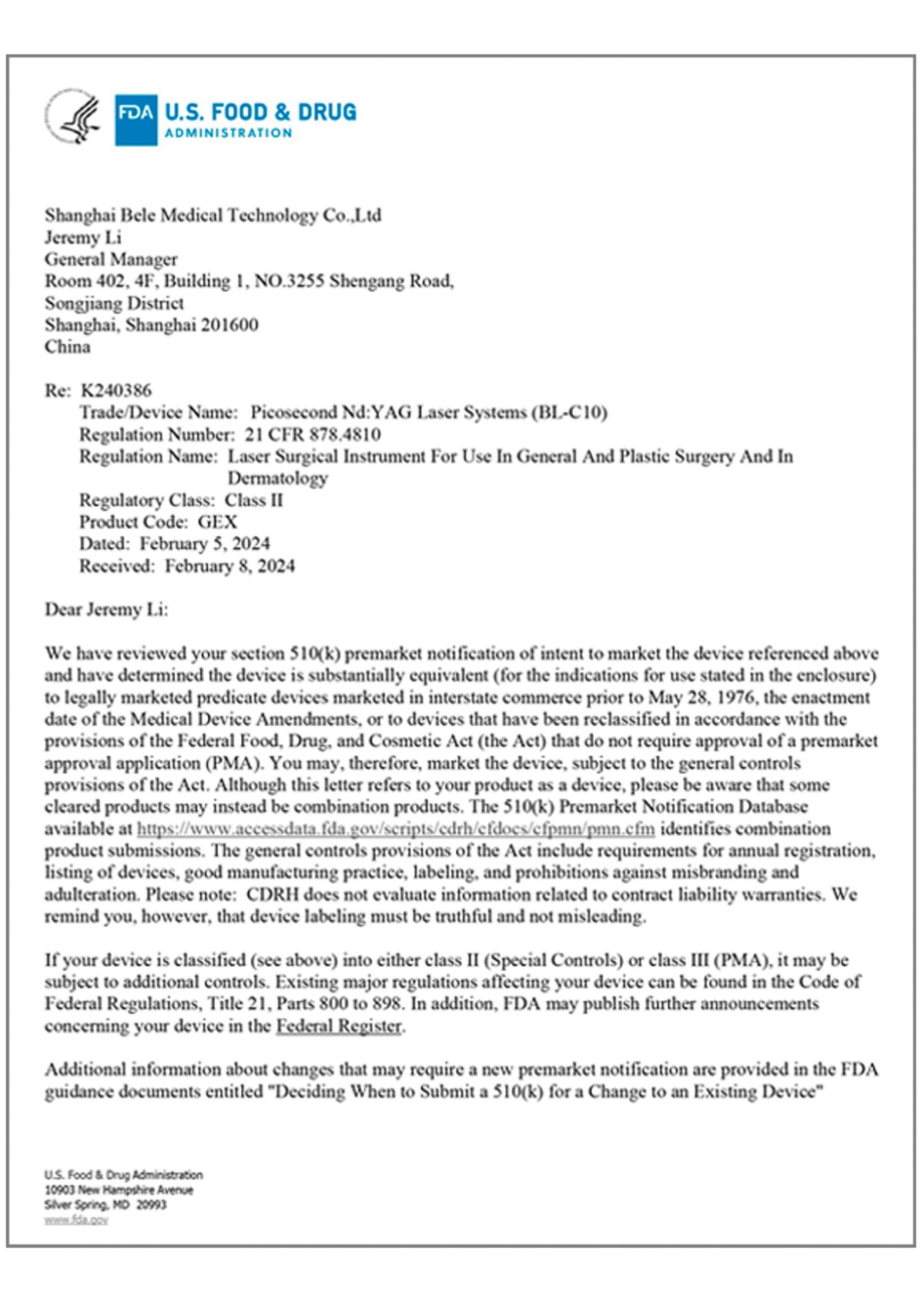

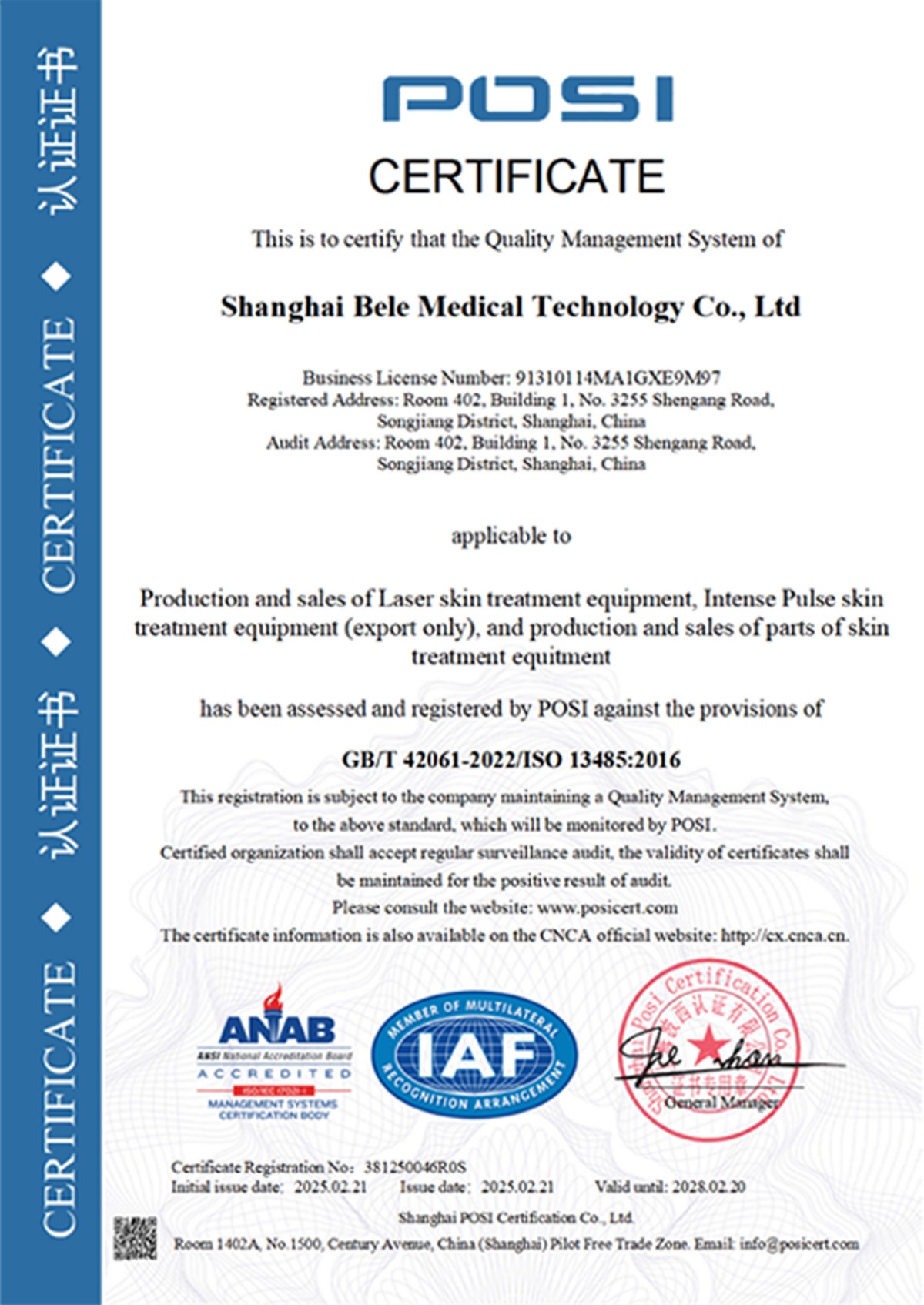

    Certificationshonor

    asdad1
    asdad2
    asdad3
    asdad4
    asdad5

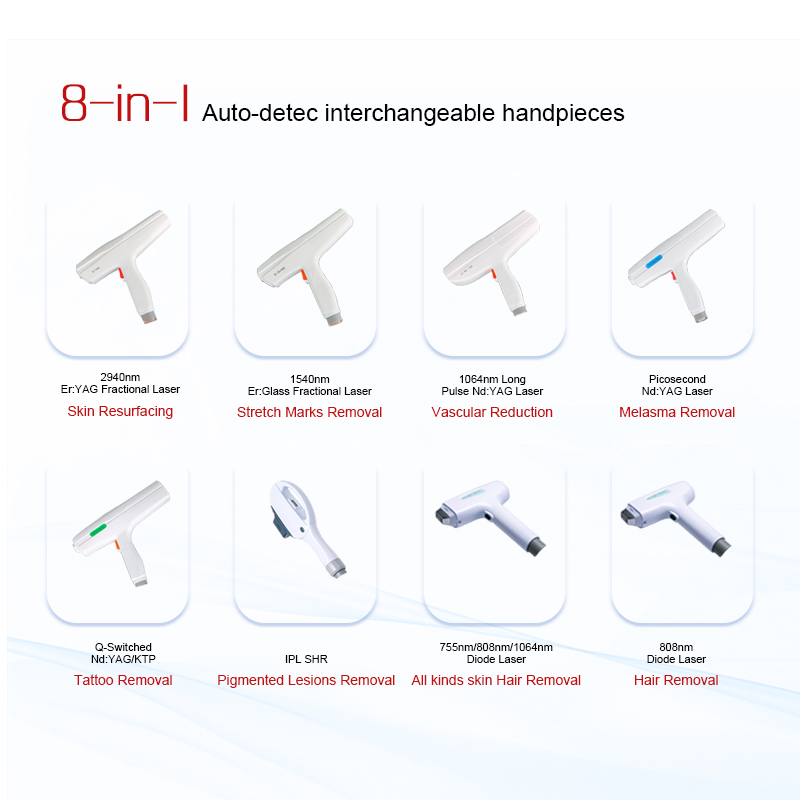

    MULTI-FUNCTION PLATFORM APPLICATIONS

    2940nm Er:YAG Fractional Laser

    Skin Resurfacing;Wart and Nevus removal;Skin Resurfacing;Wrinkles and Fine lines removal;Photodamge;Texture Irregularity

    Tighten vagina- Improve loose situation, makes the vaginal canal smaller.

    Clean the vagina- Female provate parts maintenance.

    Moist vagina - Eliminate dryness

    1540nm Er:Glass Fractional Laser

    Stretch Marks Removal;Skin resurfacing;Surgical scar, acne scar treatment;Strech marks;Melasma removal;Deep wrinkle removal;improve skin fine lines

    1064nm Long Pulse Nd:YAG Laser

    Vascular Reduction; Permanent Hair Removal for all skin types;Leg Veins and Telangiectasia;Vascular lesion;Wrinkle Removal

    Picosecond Nd:YAG Laser

    Melasma Removal;Skin Resurfacing or Skin Toning;Scars; Stretch Marks;Skin Rejuvenation;Tattoo and tattoo wound removal;Pigmented Nevus treatment;Seborrheic Keratosis treatment

    IPL SHR

    Hair Removal;Skin Rejuvenation;Pigmented Lesions Removal;Acne Treatment;Vascular Treatment;Skin lifting and firming

    755nm/808nm/1064nm Diode Laser

    All kinds skin Hair Removal;Painless diode laser hair removal;Skin rejuvenation

    Q-Switched Nd:YAG/KTP

    Tattoo Removal;Embroidered eyebrow removal; Soak lip and lip line removal; Tattoo and tattoo wound removal; Pigmented Nevus treatment; Seborrheic Keratosis treatment; Skin Resurfacing or Skin Toning; Carbon Peeling or White Peeling

    808nm Diode Laser

    Hair Removal;Painless diode laser hair removal;Skin rejuvenation
