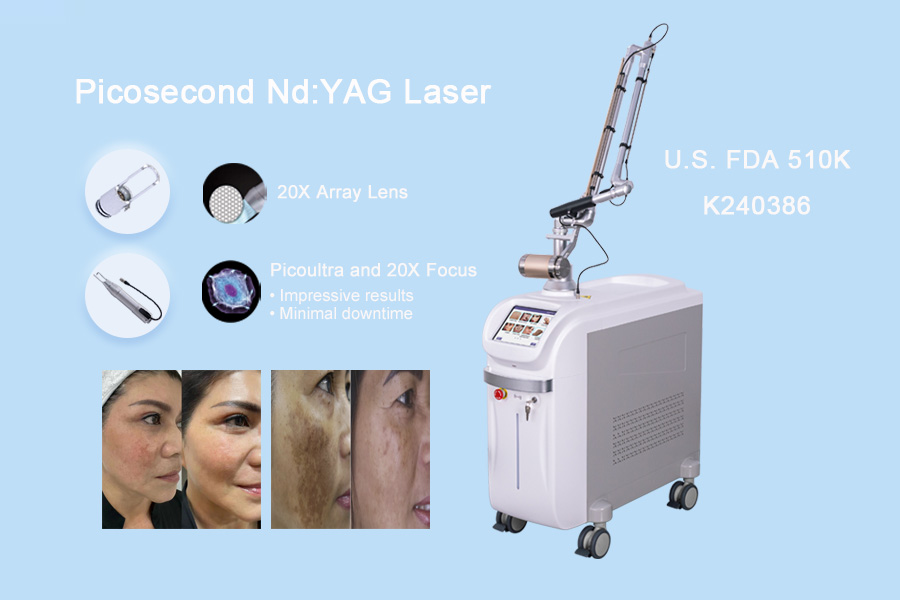

Picosecond Nd:YAG Laser
Picosecond Nd:Yag Laser is a cornerstone of modern precision laser technology.
The Picosecond Nd:YAG Laser uses ultra-short light pulses (trillionths of a second) to shatter skin pigments (melanin, tattoo ink) via a photoacoustic effect, breaking them into tiny fragments the body clears, offering precise treatment for tattoos, pigmentation (age spots, melasma), Acne scars, and skin rejuvenation with less heat damage, faster treatments, and better results for stubborn colors than traditional lasers, though at a potentially higher cost.
Core Concept: The Power of a Picosecond
A picosecond (ps) is one trillionth of a second (10⁻¹² seconds). This incredibly short pulse duration is the defining feature. When laser energy is delivered in such a brief burst, it creates an ultra-high peak power (often in the gigawatt range) while keeping the total energy per pulse relatively low.
This leads to a unique interaction with matter, primarily through photomechanical or photodisruptive effects, rather than the photothermal (heat-based) effects of longer-pulse lasers.
How It Works: The Nd:YAG Platform
Ultra-Short Pulses: Delivers energy in picoseconds, significantly faster than nanosecond lasers.
Photoacoustic Effect: The rapid energy creates a shockwave that shatters target particles (ink, pigment) into minute dust-like fragments.
Natural Clearance: The body's immune system then clears these fragments.
Nd:YAG Wavelength: The Nd:YAG crystal produces a 1064 nm wavelength, effective for black tattoos and deeper pigments, often with added handpieces for other colors or fractional treatments.
Laser Medium: Nd:YAG (Neodymium-doped Yttrium Aluminium Garnet). This is a synthetic crystal that, when "pumped" by a flashlamp or diode laser, emits light at a primary wavelength of 1064 nm (infrared).
Pulse Generation: To achieve picosecond pulses, the laser uses a technique called mode-locking. This synchronizes all the longitudinal modes of the laser cavity to produce a train of extremely short pulses.
Wavelength Options: Through harmonic generation (using non-linear crystals), the fundamental 1064 nm beam can be frequency-doubled, tripled, or quadrupled to produce other very useful wavelengths:
532 nm (Green) - Excellent for pigmented lesions and red inks.
355 nm (UV) - Used for some delicate procedures and finer tattoos.
266 nm (Deep UV) - Less common, used in specialized industrial applications.
Key Mechanism: Interaction with Matter
The picosecond pulse is so fast that it vaporizes the target material (e.g., tattoo ink, pigmented lesion) into plasma almost instantaneously. This happens before significant heat can diffuse into the surrounding tissue (a process called confined photothermalysis or photodisruption). The target fractures into tiny particles that are then easily cleared by the body's immune system.
Advantage over Nanosecond Lasers: Traditional Q-switched Nd:YAG lasers have pulse durations in the nanosecond (10⁻⁹ s) range. The picosecond laser's shorter pulse creates a more powerful shockwave and less residual heat, leading to:
More effective clearance of tattoos (especially stubborn blues and greens).
Reduced risk of scarring and hypopigmentation.
Fewer treatment sessions for many indications.
Key Applications
1. Dermatology & Aesthetics (The Most Common Use)
Tattoo Removal: Highly effective for various colors, including blues and greens, often requiring fewer sessions.
The gold standard. Particularly effective for stubborn, multi-colored, and professional tattoos. Different wavelengths target different ink colors (e.g., 1064 nm for black/dark blue, 532 nm for red).
Pigmented Lesions: Treatment of solar lentigines (sun spots), nevus of Ota, café-au-lait macules, freckles, age spots and melasma (with caution).
Acne Scars & Skin Rejuvenation: By creating microscopic zones of injury, it stimulates collagen and elastin production via Laser-Induced Optical Breakdown (LIOB), improving skin texture and tone. Addresses post-inflammatory hyperpigmentation (PIH) and acne scars.
Benign Epidermal Pigmented Lesions: Seborrheic keratosis, etc.
Skin Rejuvenation: Improves skin texture, reduces pores, fine lines, and stimulates collagen.
2. Ophthalmology
Cataract Surgery: Used in femtosecond (even shorter) and picosecond lasers for precise corneal incisions and laser-assisted lens fragmentation.
Posterior Capsulotomy: To clear a cloudy lens capsule after cataract surgery.
3. Industrial & Scientific
Micromachining: Drilling, cutting, and structuring materials (metals, ceramics, polymers) with extreme precision and minimal heat-affected zones.
Thin Film Patterning: Used in display and solar cell manufacturing.
Laser-Induced Breakdown Spectroscopy (LIBS): For material analysis.
Nonlinear Optics Research: As a pump source for optical parametric oscillators (OPOs) to generate other wavelengths.
Advantages and Disadvantages
Advantages:
High Precision & Selectivity: Minimizes damage to surrounding tissue.
Reduced Thermal Damage: Lower risk of burns, blistering, and scarring.
Efficacy: Often more effective per treatment than nanosecond lasers.
Versatility: Multiple wavelengths allow treatment of a wide range of conditions and materials.
Disadvantages:
Cost: Significantly more expensive than nanosecond lasers (both capital cost and per-treatment cost).
Pain: Treatments can be painful, often requiring topical or local anesthesia.
Post-Treatment Care: Requires diligent sun avoidance and wound care.
Not a Universal Solution: Still has limitations on certain ink colors (e.g., fluorescents) and skin types.
Leading Manufacturers
Cynosure (PicoSure® - uses an Alexandrite 755nm platform, often grouped with picosecond YAGs)
Candela (PicoWay® - true picosecond Nd:YAG/532nm)
Cutera (Enlighten®)
Lumenis (Picocare®)
Fotona (FX Q-switched/Picospray mode)
BILENS (Picosecond Nd:YAG Laser model BL-C10)
Conclusion
The Picosecond Nd:YAG Laser represents a significant technological leap. By harnessing the power of ultra-short pulses, it achieves superior results in tattoo removal and pigment treatment with improved safety profiles. Its influence extends from the clinic to the factory floor, making it a versatile and powerful tool in both medicine and advanced manufacturing.
