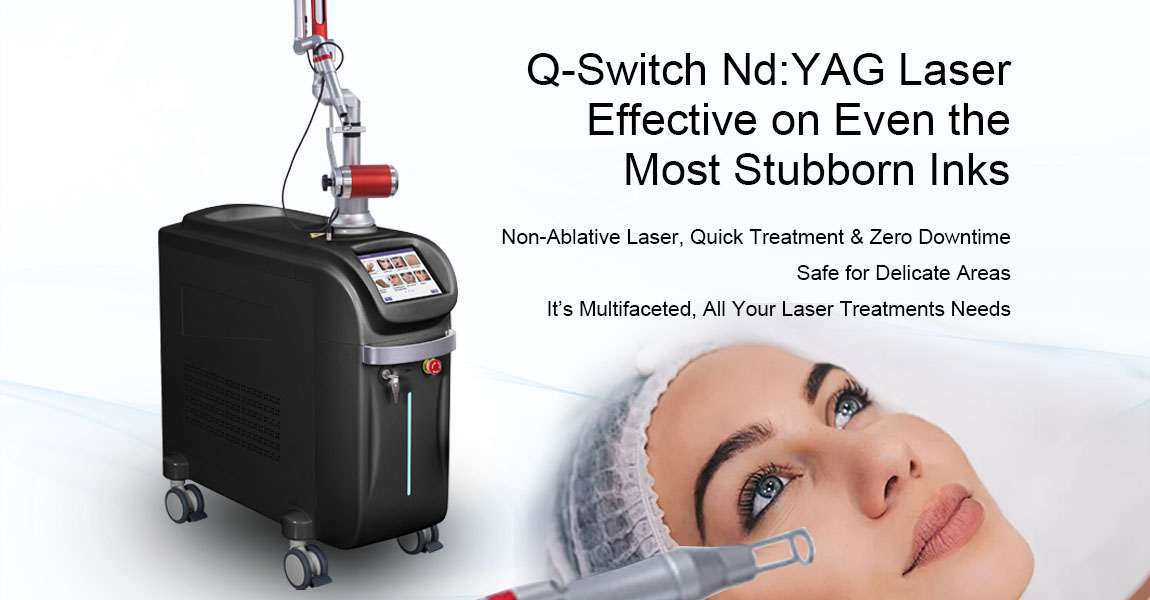

Q-Switch Nd: YAG Laser Effective on Even the Most Stubborn Inks

When it comes to the best tools for the job, look no further than the Q-Switched Nd: YAG, the most advanced Q-Switched laser yet.



This laser does the job by emitting high-intensity light pulses in short durations of literally nanoseconds. This rapid energy release is key to breaking down even the most stubborn ink particles in your skin.



The results? Happier skin because the laser’s specific wavelength targets just the pigment, not the surrounding skin, and better results with even greens and blues, the hardest colors to remove.



Model: BL-C20

Brand: BILENS

    Contact us


    C20-1-1150mod

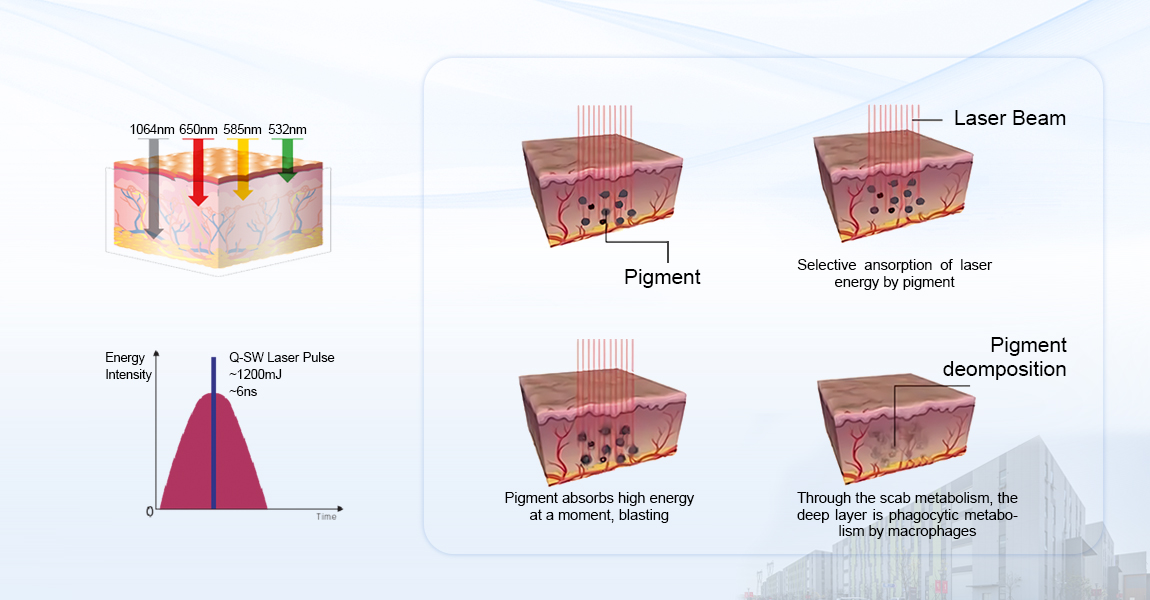

    Q-SWITCH ND: YAG LASER PRINCIPLES

    The high peak power and short pulse duration delivers efficient destruction of the target chromophore such as  tattoo ink, pigment or collagen. The electro-optic (EO) Q-Switch, acting as a high-speed shutter, stores energy  between pulses enabling the laser to produce peak power output of 200MW in 6ns pulse width. It forces energy  at a high rate, the target chromophores vibrate and shatter, without harming the surrounding skin on all skin.

    C20-5-1150v6f

    Q-SWITCH ND: YAG LASER TECHNICAL SPECIFICATIONS

    Wavelength

    1064/532nm
    Beam profile

    Flat-top mode
    Pulse width

    <6ns (Q-switched mode)
    Spot size

    2 ~ 10mm
    Repetition rate

    1~10 Hz
    Operate mode

    Q-switched mode & SPT mode & Array mode
    Output energy

    Q-switched 1064nm

    Q-switched 532nm

    1064nm SPT mode

    Max.1000mJ

    Max. 500mJ

    Max.2000mJ
    Optical delivery

    Articulated Arm
    Operate interface

    9.7' True color touch screen with Android system
    Aiming beam

    Diode 655nm(red), brightness adjustable
    Cooling system

    Advanced Air & Water cooling system
    Power supply

    AC100~240V, 50/60HZ
    Dimension

    107*60*125cm (L*W*H)
    Weight

    130Kgs

    Q-SWITCH ND: YAG LASER ADVANTAGES

    Non-Ablative Laser, Quick Treatment and Zero Downtime
    Safe for Delicate Areas
    Effective on Even the Most Stubborn Inks
    It’s Multifaceted, All Your Laser Treatment Needs

    C20-2-11509yv

    Q-SWITCH ND: YAG LASER APPLICATIONS

    ◆ Tattoo removal, Vascular lesion removal, Wrinkle reduction, Acne scar reduction
    ◆ Skin Resurfacing: Skin Rejuvenation, Skin Toning
    ◆ Epidermal and dermal pigmented lesions: Nevus of Ota, Sun damage, Melasma

    Q-SWITCH ND: YAG LASER BEFORE AND AFTER PICTURES
